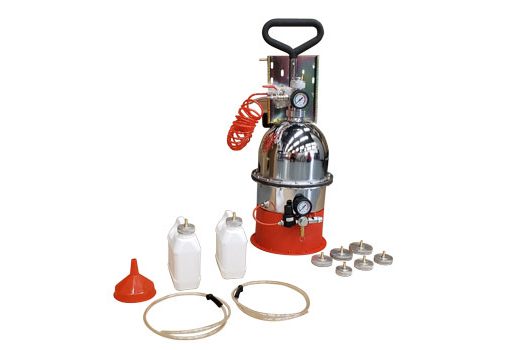

Model # DR-290CAN
Excellent units for draining oil and fluids from engines, gearboxes, and differentials in trucks, buses, passenger vehicles, and some aircraft. The DR-290CAN oil drain unit is ideal for use when vehicles are on a hoist or for rolling under SUVs, trucks, farm equipment, and vehicles with generous ground clearance. This unit comes with suction probes, quick couplers for efficient fluid extraction, and adapters for BMW and Volkswagen vehicles.
- 90L/24 Gallon tank capacity
- 65-70L/17-18.5 Gallons of total suction capacity
- 100-115 PSI Vacuum pressure
- 150-180 Seconds, Depressurization time
- 1.5-2 LPM/ 0.4-0.5GPM Suction speed
- 65L/17 Gallon collection basin capacity
- Collection basin dimensions: 26″L x 20″W x 9″H
- Maximum height: 61″
- Minimum height: 43.3″
- Drain pressure: 14.5 psi
- Air inlet connection:
- 1/4″ quick plug
- 1/4″ NPT female
- 6 1/2 ft. Suction hose length
- 6 1/2 ft. Drain hose length
- Weight 88Lbs
Probe Dimensions:
- Probe: 0.28 D x39.0” L
- Probe: 0.235 D x27.0” L – Metal
- Probe: 0.195 D x27.0” L
- Probe: 0.313 D x27.0” L
- Probe: 0.241 D x27.0” L
- Probe: 0.194 D x27.0 L – Metal
