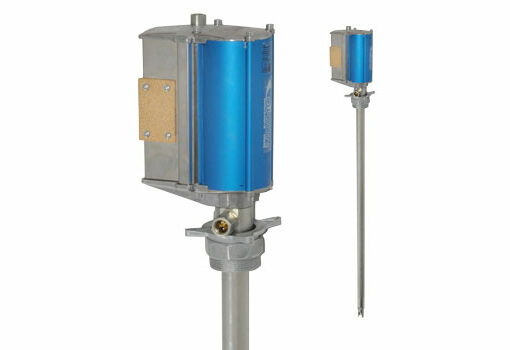

Model # GP-12750
An air-operated grease pump designed for pail containers. 2” bung adapter included.
- Ratio: 60:1
- Capacity: 1000 gr/min
- For container: 12-20 kg
- Air connection 1/4″ (F) BSP
- Maximum air pressure: 1,0 (10) MPa (bar)
- Recommended air pressure: 0,4 (4) – 0,7 (7) MPa (bar)
- Outlet: 3/8″ (F) BSP
- Pump tube: 450 mm
- Length: 700 mm
IMPORTANT
The following items are a must to have your pump operating trouble free for a long time.
Model # 202 6154
Bracket 30mm for FLR, for air motors
Model # 222 6155
Air hose for pump to FLR systems.
Model # 1559
Filter, Regulator with Pressure Gauge
Connecting to the pump:
This setup helps prevent damage to the air intake valve caused by repeated stress on the air hose. Additionally, the installation of a filter regulator is highly recommended to prevent moisture from entering the air pump.
