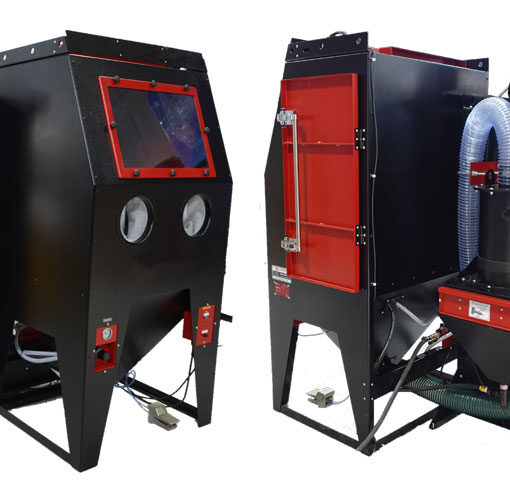

Model # K-CB3636S
Abrasive Blasting Cabinet System for semi-industrial, automotive, manufacturing after market operations. Canadian-made blast cabinet with heavy-duty welded steel construction.
This cabinet features a pedal control, efficient cyclonic media separator recovery system, and a powerful self-cleaning cartridge-type dust collector that meets Canadian and American standards.
Cabinet Specifications
- Delivery System: Suction
- Media Capacity: 1.5 cu.ft.
- Metal Thickness: 12 gauge
- Floor capacity: 500 lb
- Gloves: Rubber
- Nozzle ID: 5/16”
- Blast Gun: Foot Control
- Regulation Flow: Yes
- Interior Dimensions: 36″L x 36″W x 35″H
- Overall Dimensions: 36½”L x 40¼”W x 75″H
Media Recovery Specifications
- Body Diameter: 10”
- Air Flow: 400 CFM
- Overall Dimensions: 22”L x 22”W x 74”H
- Inlet ID: 4”
- Outlet ID: 4”
- Storage Hopper: 1.5 cu. ft.
Dust Collector specifications
- Motor: 3/4 HP
- Fan: 400 CFM
- Filter Cartridges: 1 Filter
- Capacity: 318 sq.ft.
- Overall Dimensions: 30”L x 23”W x 75”H
- Shipping Height: 80”
- Fan Muffler (db): Under 80
